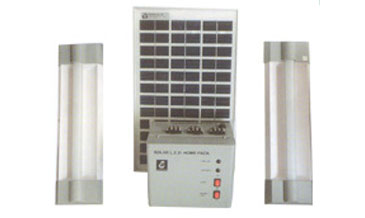

Solar Home Light System

Home lighting solar systems are the fixed installations designed for domestic application. The components of the solar lighting system includes solar pv module (solar cells), charge controller, solar battery and lighting system (lamps & fans). Easy Photovoltech's home solar lightening module are installed in the open on roof/terrace - exposed to sunlight and the charge controller and battery are kept inside a protected place in the house. We manufacture home lighting solar system, solar home lighting system, home solar lighting system, home lighting system.


Solar Home Lighting System)
Our technical support experience spans a wide variety of products :

• System consists of III Solar module 12v 8 watt
• Battery 12v 7 A
• 3watt led luminary with dc to dc constant current circuitry more than 85% efficiency constan
• Mobile charger with fan optional
• Operation 3-4 hourst
• Autonomy 2 days
• Low battery cut
• Electronic Blocking (To protect against the reverse polarity connection of PV panel and prevent current from battery to panel at night time)
• Temperature compensation for better battery charging for various climate and terrain
• Battery reverses polarity protection with fuse
• 3/4 LED indication systems for system and battery status
• Efficient Over charge and deep discharge protection
• Electronic overload protection avoiding blowing of fuse except in reverse battery
• Short circuit protection on load side
• Multi level overload protection

Technical specifications of Luminary cum Electronic Controller
Type of Luminary LED Protections :
Rated Power of Luminary 3 Watt Reverse polarity of battery connections.
Input operating Voltage 12V DC Nominal Battery Deep discharge.
Input Voltage 11 to 14Volts DC 11 to 14Volts DC Load open circuit.
Range Battery fully/trickle charging 14.40Volts + / - 0.2V Output short circuit etc.
Battery Deep discharge cut off 11.20V + / - 0.2 V LED Indications:
Battery charging.
Battery deep discharge
MODEL POWERED BY LOAD Hours Per Day/ Autonomy
MODEL -1 8Wp/4.5Ah 2*4 Watt Led Bulb/Tube 2 Days
MODEL -2 10Wp/7.5Ah 2*4 Watt Led Bulb/Tube 3 Days
MODEL -3 12Wp/7.5Ah 3*4 Watt Led Bulb/Tube 3 Days
MODEL -4 15Wp/12Ah 4*4 Watt Led Bulb/Tube 3 Days
MODEL -5 20Wp/15Ah 5*4 Watt Led Bulb/Tube 3 Days
